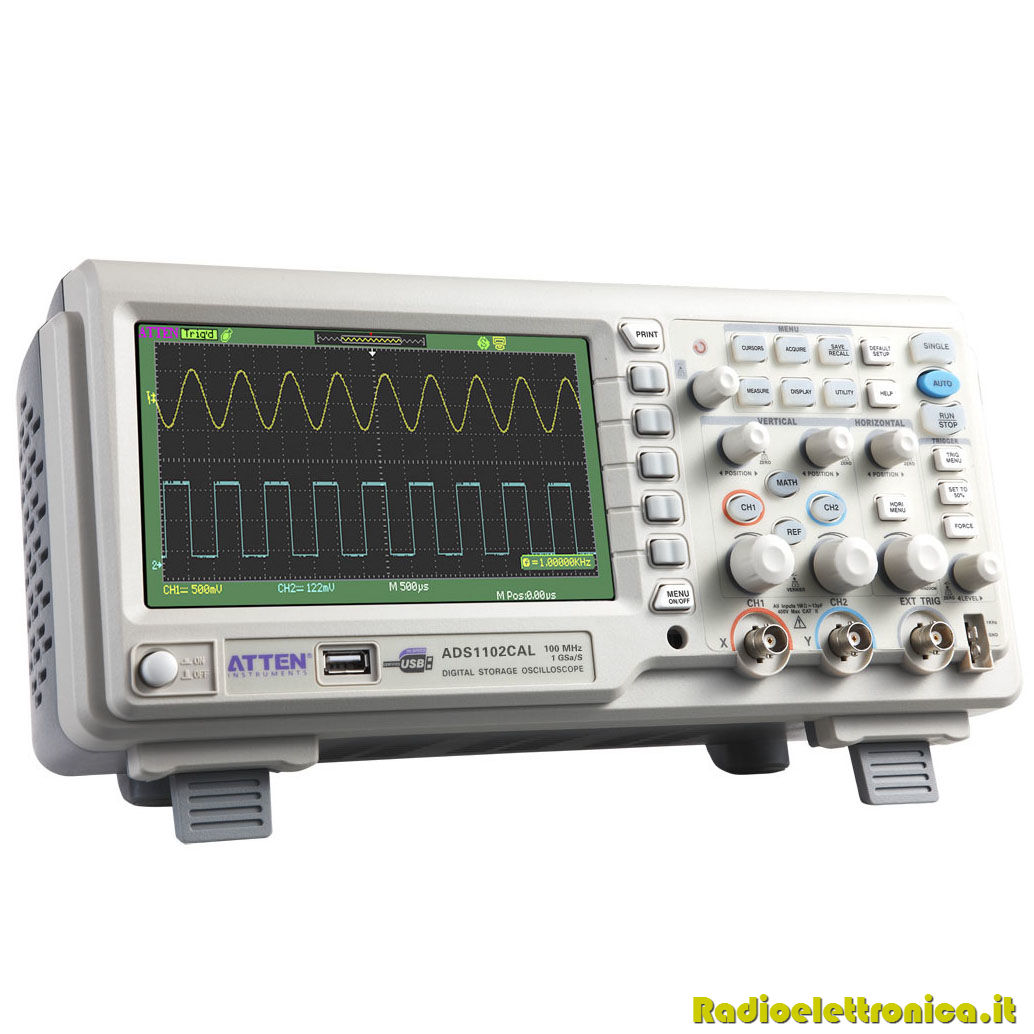

Digital Storage Oscilloscope ATTEN ADS 1102CAL 100 Mhz 1GHS/s 2 channels LCD +usb. Display colori 16/9 Model Index ADS1102CAL; Bandwidth 100MHZ; Sampling Rate Single Channel:1000MSa/s;Double Channels:500Msa/s; Equivalent Sampling Rate 60GSa/s; Memory Depth Single Channel: 2M; Double Channels: 1M/CH; Rise Time <5.8ns; Input Impedance 1M ohm || 17pF; Sec/div Range 5ns/div-50s/div; Display Color TFT(320*234)5.7 LCD 16/9; Technical Specifications: The Common Specifications Of All ADS1000 Series Products Display 12 divides full screen display; Channels 2; Vertical Sensitivity 2mv-5v/div(1-2-5 Sequence), Vertical Resolution 8bit; Input coupling DC, AC, GND; Input Max voltage 400V(Vpp); Trigger Types Edge, Pulse, Video, Slope, Alternative, Delay; Trigger Modes Auto, Normal, Single; Trigger Source CH1, CH2, Ext, Ext/5, AC Line; Save/Recall Provide two groups reference waveforms, twenty groups capture waveforms and twenty groups setups internal save/recall function and USB flash drive Save/Recall function; Auto Measure Types Vpp, Vmax, Vmin, Vamp, Vtop, Vbase, Vavg, Mean, Vrms, Crms, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Freq, Period, Rise time, Fall Time, +Width, -Width, +Duty, - Duty, BWid, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF; Cursor measure Manual, Track, Auto; Sample Types Real Time, Equivalent Time; Averages 4, 16, 32, 64, 128, 256; Math +, -, *, /, Invert; FFT Window: Hanning, Hamming, Blackman, Rectangular Sampling Points: 1024 points; XY Mode Phase Error: +/-3 degrees Support the sampling rate : 5KSa/s200MSa/s (in a 1-2-5 sequence); Persist Off, 1sec, 2sec, 5sec, Infinite; Display Model Main, Window, Window Zoom, Roll, X-Y; Menu Display 2Sec, 5Sec, 10Sec, 20Sec, Infinite; Skin Classical, Modern, Tradition, Succinct; Display Language Simplified Chinese, Traditional Chinese, English, Arabic, French, German, Russian, Spanish, Portuguese, Japanese, Korean; Power Source Voltage 100-240VAC, 47HZ-440HZ, 60VA Max; Size and Weight 305mm x 154mm x133mm, about2.3kg; USB Host Support USB flash drive storage; USB Device Support PictBridge compatible printers and PC Remote control RS-232. ATTEN ADS1162CAL Digital Storage Oscilloscope Package Contains 2 proves 10:1 EasyScope Computer Software System; Power Cord; USB-cable; User guide.
