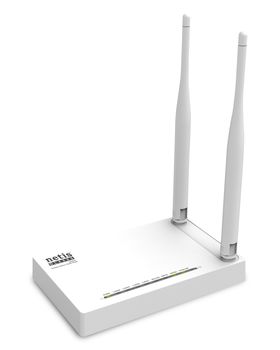

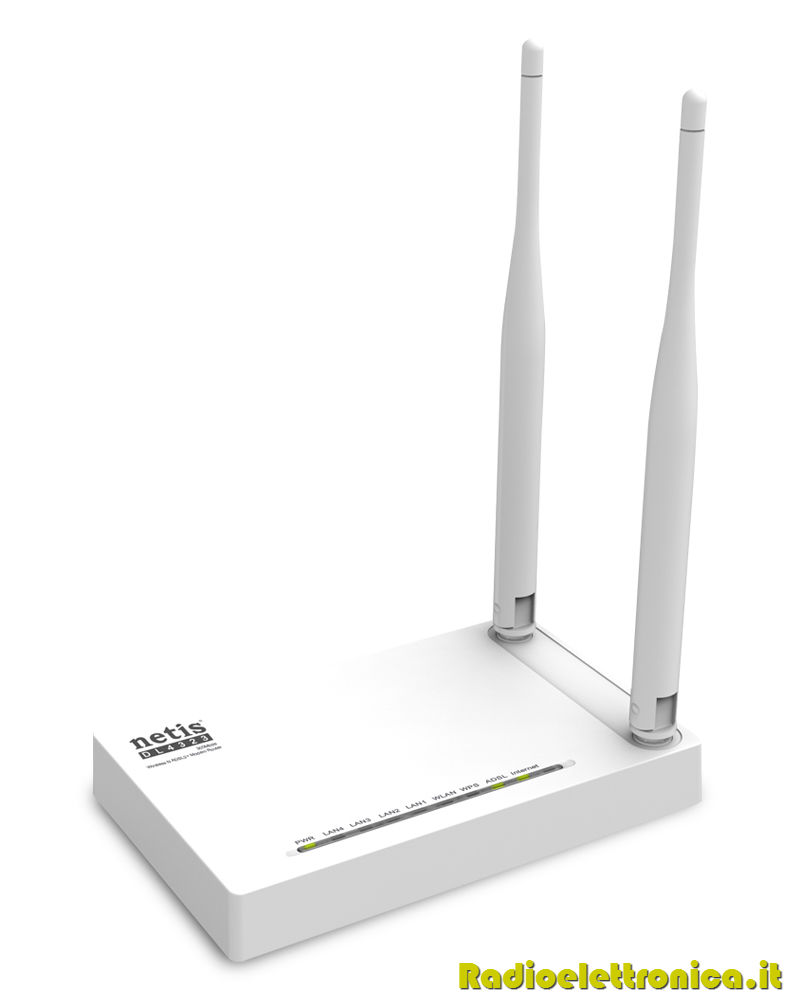

DL4323 - 300Mbps Wireless N ADSL2+ Modem Router

Old price: 36.87
29.50
You save: 7.37 (20%)
W.DL4323
10 item(s)
+
Add to wish list

Il DL4323 è un dispositivo 3-in-1 che combina le funzioni di Modem ad alta velocità ADSL2+, router NAT a 4 porte e Access point wireless N.

Dotato di 2 antenne da 5dBi.

È stato progettato per fornire agli utenti finali una soluzione all-in-one per acquisire e condividere l'accesso a Internet ad alta velocità su rete cablata/wireless.

Tra le caratteristiche sono presenti il Port Mapping per IPTV, Firewall, WAN Ethernet, SNMP, IPv6, TR-069 e molto altro ancora.

Wireless N fino a 300Mbps: ideale per online gaming, telefonate VoIP e streaming video.

Eccellente protezione contro i fulmini (4KV).

Configurazione guidata.



http://www.websrl.com/images/detailed/58/201604010210264064.jpghttp://www.websrl.com/images/detailed/58/201604010210293233.jpg

http://www.websrl.com/images/detailed/58/201604010210367063.jpg



http://www.websrl.com/images/detailed/58/20160413074622_85638.jpg

Caratteristiche



Hardware
Ethernet StandardsIEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
Interface1 * RJ11 ADSL Port,
4* 10/100Mbps Auto MDI/MDIX RJ45 LAN Port
(Optional Ethernet WAN for LAN4)
LEDPWR, LAN4, LAN3, LAN2, LAN1, WLAN, WPS, ADSL, Internet
Power SupplyDC 12V/500mA(Output)
ButtonWPS, Default, Power ON/OFF
Dimensions (L x W x H )144.5 * 90 * 26.5 mm
Software
ADSL VersionADSL, ADSL2, ADSL2+
Data RateDownstream: Up to 24Mbps
Upstream: Up to 1Mbps
ATM / PPP ProtocolATM Forum UNI3.1/4.0 PVC (up to 8PVCs)
ATM Adaptation Layer Type 5 (AAL5)
ATM QoS
Bridged and Routed Ethernet Encapsulation
VC and LLC Based Multiplexing
PPP over Ethernet (RFC2516)
PPP over ATM (RFC 2364)
IPoA (RFC1577/2225)
Main FeatureDHCP, DHCP Relay
NAT, Static Routing
VPN (PPTP, L2TP, IPsec) Pass-through
PVC/Ethernet Port Mapping
DNS Relay, DDNS
IGMP Multicast, IGMP Snooping V1/V2
Virtual Server, DMZ, ACL (Access Control List)
UPnP
IPv6
ManagementWeb Based Configuration (HTTP), Remote Management,
Telnet Management, Command Line Interface,
TR-069, SNMP, Web Based Firmware Upgrade, CWMP (TR-069), Diagnostic Tools
Wireless StandardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequency Range2.4-2.4835GHz
Wireless SpeedUp to 300Mbps
Wireless SecurityWEP 64/128bits,
WPA(TKIP/AES)/WPA2(TKIP/AES)/WPA2 Mixed,
802.1x Authentication
Wireless MAC Filtering
Wireless Security Power20dBm
Antenna Type2* 5dBi Antennas
Others
CertificationCE, FCC
EnvironmentOperating Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~90%RH non-condensing
Package1 * DL4323
1 * 12V/500mA Power Adapter
2 * RJ11 Telephone Cable
1 * RJ45 Ethernet Cable
1 * ADSL Splitter
1 * Quick Installation Guide (Multilingual)







Brand:
Netis
